Benefits

Visual and easy to use

Designed for the QS

Easy to learn

No external CAD software needed

Fully integrated with Conventional Measurement

Big time saver

CAD take-off that the ordinary QS can understand

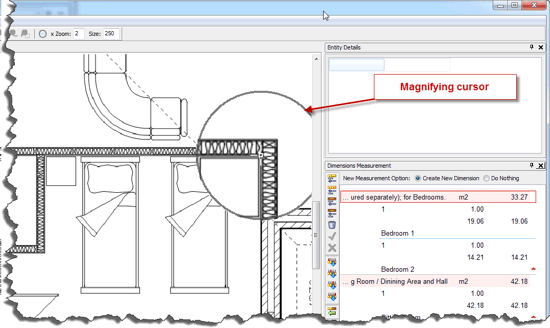

Use magnifying cursor to see right into the corners

Vector gives you everything you need to take-off from CAD drawings including take-off from DWG, DFX, DGN or PDF drawing files. No additional software is required.

Measurement is quick and easy with automatic calculation of lengths, areas and angles.

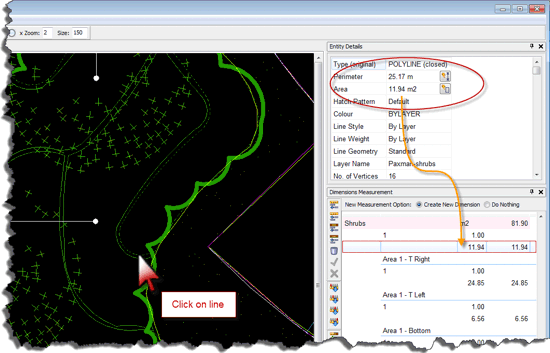

Complex areas can be measured very quickly and accurately. Area and perimeter of polyline shapes are instantly accessible. Complex areas can also be traced very quickly using either ‘snap to’, and the magnifying cursor which enables you to see right into the corners.

Multiple separate lengths or areas can be grouped for measurement purposes.

The take-off is documented in the bill take-off and on the drawing.

Complex drawings can be simplified using the layers controls to show / hide detail, additional measurement layers can be created to separate different parts of the take-off.

Print the drawing marked up with your take-off detail direct to the printer, or export as a PDF to show others how you did your measure.

Because you are using a single integrated program for Measuring, Bill Production and Estimating the whole process is streamlined and simplified.


Measure with Entity Details, Quick Measure

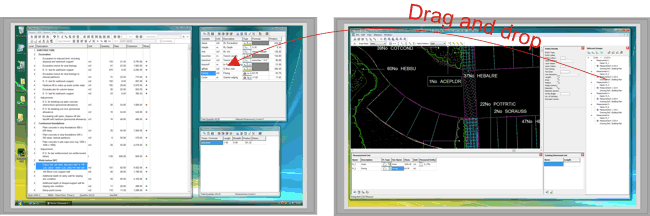

Vector's measuring system default layout works efficiently on standard desktop and laptop computers. Even better, it is customisable enabling surveyors with large high-resolution screens, and twin screen systems to optimise their layout for very efficient working.

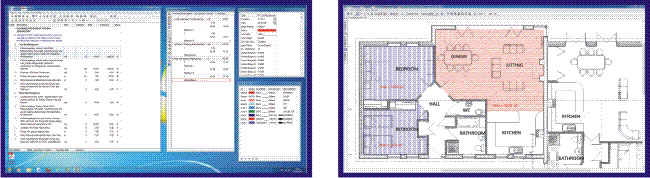

The screenshot above shows Vector with the bill, measurements, current CAD measurement item properties, take-off styles and drawing all displayed concurrently on a twin screen setup.
